MIPI CAMERAS
MIPI CSI-2 CAMERA MODULES FOR EMBEDDED VISION
The MIPI Cameras from Vision Components are embedded camera modules that can be integrated into numerous devices and applications. VC MIPI® Cameras are based on the MIPI CSI-2 interface, a widely used standard, and can be combined with all common processor boards.
VC MIPI Cameras for Industrial and Professional Use-cases
MIPI Cameras were originally developed for smartphones and other mobile applications and use the MIPI CSI-2 interface (Camera Serial Interface-2) defined by the MIPI Alliance (Mobile Industry Processor Interface Alliance) for fast data transfer between the camera sensor and processor board. That is why they are also referred to as “CSI cameras” for greater technical precision.

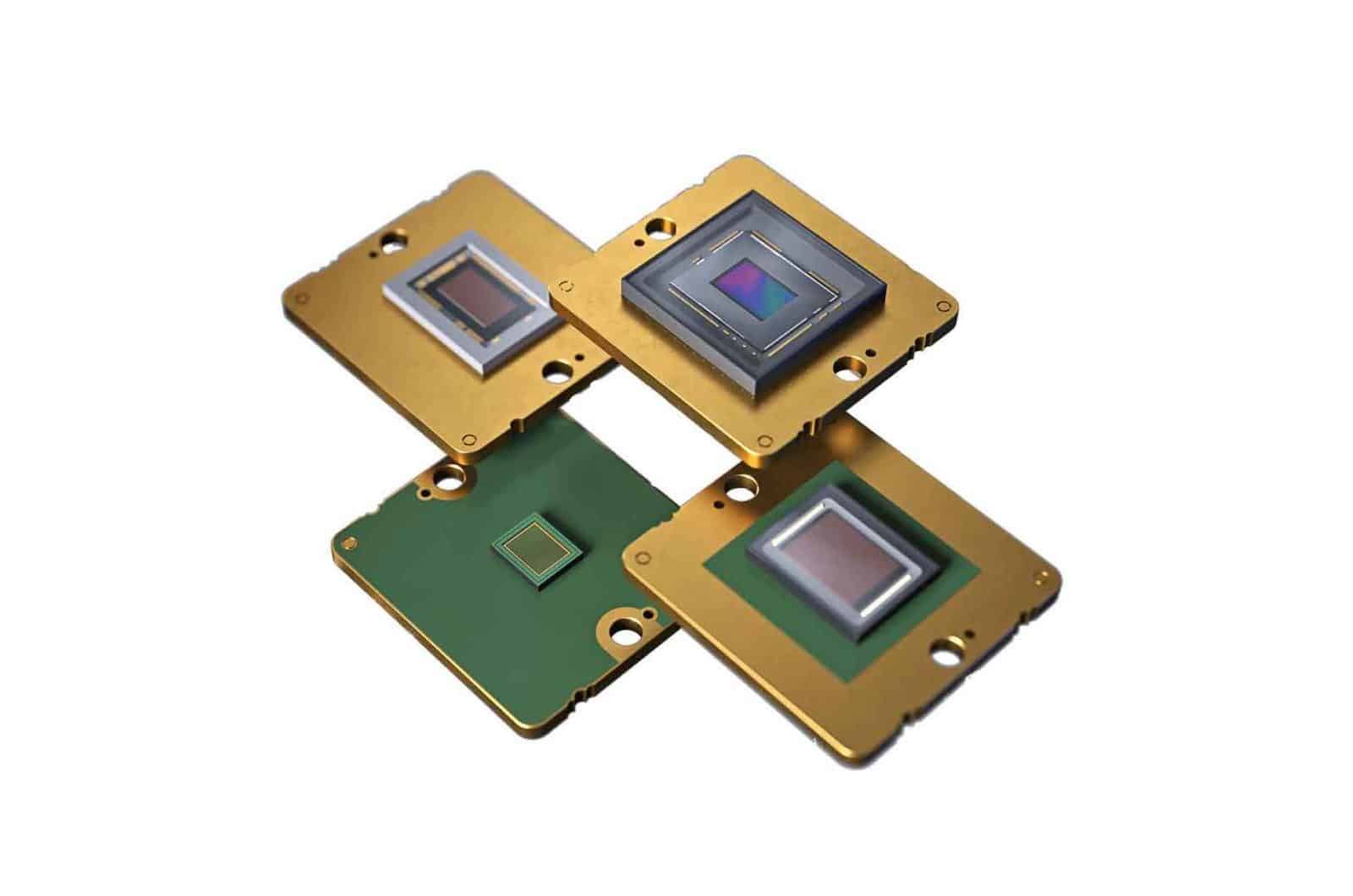

VC MIPI® camera modules bring this technology to industrial applications and series products: they are price-optimized, available long-term, and robust.
VC MIPI IMX900
The world's first MIPI camera with SONY IMX900 image sensor. High image quality and light sensitivity up to the NIR range.
- 3.2 MPixel
- Global Shutter
- 1.6 MPixel
- Global Shutter
- 5.1 MPixel
- Global Shutter
- 12 MPixel
- Global Shutter
- 2.1 MPixel
- Rolling Shutter
VC MIPI IMX335
Low-cost MIPI camera module for industrial/commercial use. High image quality at a low price.
- 5 MPixel
- Rolling Shutter
VC MIPI IMX900
The world's first MIPI camera with SONY IMX900 image sensor. High image quality and light sensitivity up to the NIR range.
- 3.2 MPixel
- Global Shutter
- 1.6 MPixel
- Global Shutter
- 5.1 MPixel
- Global Shutter
- 12 MPixel
- Global Shutter
- 2.1 MPixel
- Rolling Shutter
VC MIPI IMX335
Low-cost MIPI camera module for industrial/commercial use. High image quality at a low price.
- 5 MPixel
- Rolling Shutter
Desired sensor not found?
We offer the widest range of image sensors, from extremely cost-effective MIPI CSI-2 cameras to high-end sensors with 20 megapixels and more, with global shutter, rolling shutter or global reset shutter. For individual projects, we adapt standard modules or develop new cameras with customer-specific image sensors.
50+ Image Sensors: Which one Fits Best for Your Project?
VC MIPI CSI-2 Cameras feature a price- and production-optimized design, as well as highest product quality and long-time availability. They open up new possibilities for innovative products, in industrial use-cases as well as for portable devices, drones and vehicle applications.
Typical areas of application:
Mobile Applications
Originally developed for smartphones and tablets, MIPI cameras are ideal for handheld devices, drones, and other mobile devices and machines.
Industrial Image Processing
In industry, MIPI cameras measure, inspect, and identify objects and surfaces. They are indispensable for quality assurance and material handling.
Robotics
MIPI CSI-2 cameras are used for positioning and navigation of mobile robots (AMRs) and in industrial automation.
Smart Devices
Smart devices rely on embedded cameras to recognize and identify codes, items, or objects and to automate processes.
What are the benefits of MIPI CSI-2 Cameras?
VC MIPI CSI-2 Cameras feature a price- and production-optimized design, as well as highest product quality and long-time availability. They open up new possibilities for innovative products, in industrial use-cases as well as for portable devices, drones and vehicle applications.
More about MIPI CSI-2 Cameras
A MIPI camera is a camera that uses the MIPI CSI-2 interface defined by the MIPI Alliance (Mobile Industry Processor Interface Alliance) for fast data transmission between the camera sensor and the processor board. This is why they are also referred to as "CSI cameras" or „MIPI CSI Cameras“. The powerful, ultra-compact and energy-efficient Cameras were originally developed for smartphones and other mobile applications. For industrial applications, there are special MIPI CSI-2 cameras such as the VC MIPI® Camera Modules, which are long-term available, robust, and price-optimized. These CSI cameras meet all requirements for industrial series production.
A MIPI camera (Mobile Industry Processor Interface - camera) uses the MIPI CSI-2 interface (Camera Serial Interface 2) to transfer images and videos to a host device, for example a processor or microcontroller.
Image capture: The image sensor captures an image and digitizes it.
Image processing: Splitting the data into individual images
Transmission via CSI-2: Transmission of the individual images to the host
Virtual channels and lanes: Data transmission through virtual channels. The number of lanes determines the bandwidth.
High-speed transmission: Data transmission via the D-PHY layer
Reception and decoding of data
MIPI camera modules (Mobile Industry Processor Interface) are ideal for installation in mobile devices, robots and ultra-compact sensors. In conjunction with embedded vision and onboard data processing, no additional computing units are required.
Key advantages of MIPI camera modules:
High-speed data transmission:
The high bandwidth of up to 6 GBit/s (with 4 lanes of 1.5 GBit/s each) enables high-resolution image and video applications.
Low power consumption
Compact size
Multi-camera support:
Versatile applications
Easy integration
MIPI CSI-2 is the most commonly implemented interface for embedded cameras.
Ultra compact
Powerful
The fast image processing rates and high resolution of the image sensors make VC MIPI® modules extremely powerful. State-of-the-art signal processing technologies enable precise image analysis and processing in real time.
Large product range
We offer the widest range of image sensors, from extremely cost-effective MIPI cameras to high-end sensors with 20 megapixels and more, with global shutter, rolling shutter or global reset shutter. For individual projects, we adapt standard modules or develop new cameras with customer-specific image sensors.
Highlights of our VC MIPI Cameras
VC MIPI IMX900
- 3.2 MPixel
- Global Shutter

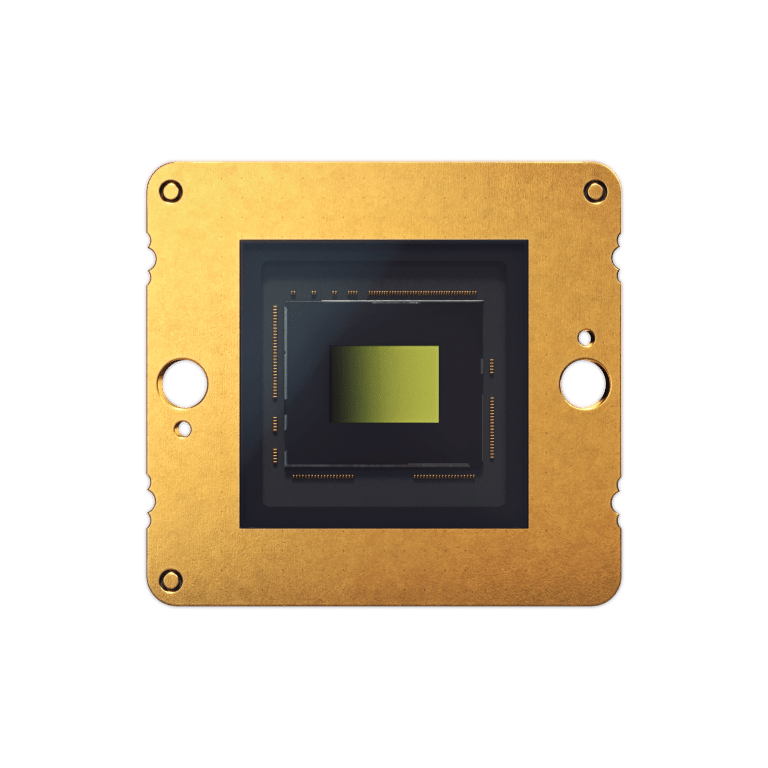

VC MIPI IMX296
- 1.6 MPixel
- Global Shutter
VC MIPI IMX568
- 5.1 MPixel
- Global Shutter
VC MIPI IMX565
High-end/mid-range MIPI CSI camera with SONY Pregius® sensor. 12 MPixel resolution for a wide range of applications.
- 12 MPixel
- Global Shutter
VC MIPI IMX462-C
- 2.1 MPixel
- Rolling Shutter
VC MIPI IMX335
- 5 MPixel
- Rolling Shutter
VC MIPI Bricks
Embedded Vision based on the MIPI CSI-2 Interface
Individual image processing made easy
Vision integration: simple, fast & cost-effective
Buy MIPI modules
Compact design and maximum flexibility: over 50 image sensors from 0.5 to 20+ MPixel, with global shutter etc.
Buy accessories
Optimally tailored to our MIPI Camera Modules, for prototyping,
development and series production. etc.
Find solutions
Customized embedded vision solutions, from the camera to the individual electronics.
THE VC MIPI ECOSYSTEM
Vision integration: simple, fast & cost-effective
Successful projects with VC MIPI Cameras
Projects with VC MIPI® Cameras and various processor boards are already successfully used in numerous industries and applications. This includes automation and quality assurance as well as robots, intelligent household devices and solutions for smart cities, drones and special vehicles, medical technology and laboratory equipment.
Space operation: VC MIPI for Satellite Images of Earth

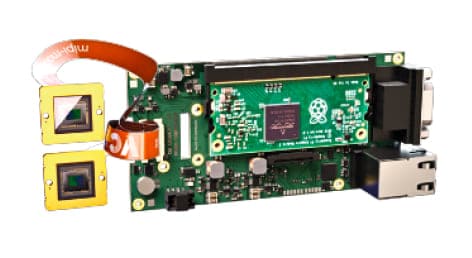

Interconnected nano-satellites use VC MIPI® and Raspberry Pi.
Flexible Intralogistics: Precise Navigation for arculus AMRs
Find and read engraved characters? Deep learning helps!
MIPI for industry starts here
Further questions about MIPI CSI-2 cameras
More information needed?
How does a MIPI camera work?
How does a MIPI camera work?
A MIPI camera (Mobile Industry Processor Interface - camera) uses the MIPI CSI-2 interface (Camera Serial Interface 2) to transfer images and videos to a host device, processor or microcontroller. The MIPI CSI-2 interface is specifically designed for mobile and embedded systems and is commonly used in smartphones, tablets, drones and other compact electronic devices.
VC MIPI® Cameras are based on the same technology, and are adapted to the special requirements of professional applications. They offer a price-optimized design, industrial-grade quality and long-term availability.
What are the advantages of MIPI cameras?
What are the advantages of MIPI cameras?
What are MIPI CSI cameras used for?
What are MIPI CSI cameras used for?
MIPI cameras were originally developed for smartphones and tablets, where they can be integrated into the smallest of spaces. Today, industrial applications and smart devices also benefit from these advantages. VC develops and produces special MIPI CSI cameras for professional applications, such as medical diagnostics, to read engraved characters or to navigate robots and AMRs.
Which cable do I need for a MIPI camera?
Which cable do I need for a MIPI camera?

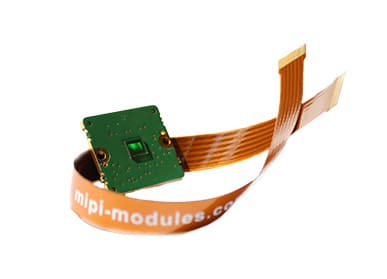

A ribbon cable specially designed for MIPI CSI-2 is usually used to connect a MIPI camera. The MIPI FFC cables (Flexible Flat Cable) or FPC Cables consist of parallel, flat cables and are ideal for high-speed data transmission in a compact design. Shielded flat cables are often used to protect against electromagnetic interference (EMI).
The connectors and cables must be matched to the specific connections of the processor board used. Different MIPI connectors are implemented, depending on the manufacturer.
MIPI cables are usually a maximum of 20 cm long. For longer cables up to 10 m and more flexible integrations, VC offers solutions with SerDes adapters and coaxial cables.
Are you working on your own vision project with MIPI CSI-2 cameras?
Our VC MIPI® camera modules offer maximum flexibility for development, prototyping, and series production.
